ClockIn
The ClockIn API call is used to Clock In a user. This call will inform Eyelit MES-M that a user is now clocked in and available for work. The Clock In time will be the system time when the request was received.
Figure 1 - Logic within Attendance-ClockIn API Call
Data Prerequisites
To clock a user in to Eyelit MES-M the user must already exist.
Request
Table 1 shows the method and endpoint required to make the API call to Clock In a user.
Table 1 - Outbound Message Detail for Attendance-ClockIn
Method | URL Structure | Endpoint |
PUT | https://[environment].mestec.net | /api/Attendance/ClockIn |
The body of the payload should follow the format below.
JSON structure for Attendance-ClockIn
See Table 2 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 2 - Parameter Information for Attendance-ClockIn
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
UserName | useraccount.username | VARCHAR2(50) | Yes | No | Exact |
Sample Request
See below for sample use cases with examples of the JSON payload format required.
To Clock a user into Eyelit MES-M.
JSON Sample for Attendance-ClockIn request
Response
When using the Attendance-ClockIn API call, if user is clocked in Eyelit MES-M , a JSON payload will be returned containing data in the following structure:

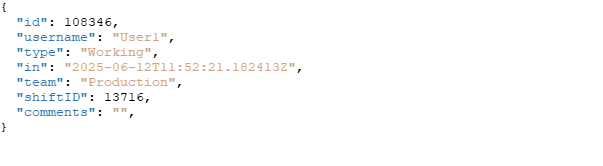

JSON structure for Attendance-ClockIn Response
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
Sample JSON response for Attendance-ClockIn
ClockOut
The Attendance-ClockOut API call is used to Clock a user out of Eyelit MES-M. This call will inform Eyelit MES-M that a user is now clocked Out and no longer available for work. The Clock Out time will be the system time when the request was received.
Figure 2 - Logic within Attendance-ClockOut API Call
Data Prerequisites
To clock a user Out of Eyelit MES-M the user must already exist.
Request
Table 3 shows the method and endpoint required to make the API call to Clock Out a user.
Table 3 - Outbound Message Detail for Attendance-ClockOut
Method | URL Structure | Endpoint |
PUT | https://[environment].mestec.net | /api/Attendance/ClockOut |
The body of the payload should follow the format below.
Table 4- Parameter Information for Attendance-ClockOut
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
UserName | useraccount.username | VARCHAR2(50) | Yes | No | Exact |
Sample Request
See below for sample use cases with examples of the JSON payload format required.
To Clock a user Out of Eyelit MES-M:
JSON Sample for Attendance-ClockOut request
Response
When using the Attendance-ClockOut API call, if user is clocked out in Eyelit MES-M, a JSON payload will be returned containing data in the following structure:

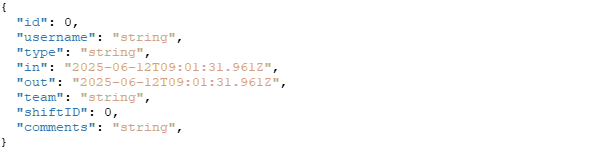

JSON structure for ClockOut Response
Sample Response
See below for sample use cases with examples of the JSON payload format returned.

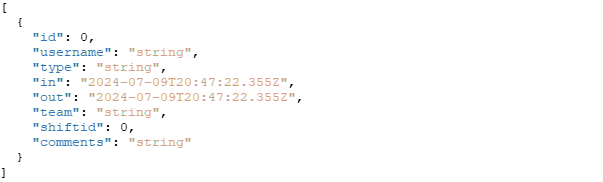

Sample JSON response for successful ClockOut
GetShift
The Attendance-GetShift API call is used find the shift information for a user during a specified timeframe. This call will return the shift(s) ID and name a user was clocked in during the specified timeframe.
Figure 3 - Logic within Attendance-GetShift API Call
Data Prerequisites
The user must exist in Eyelit MES-M.
Request
Table 5 shows the method and endpoint required to make the API call to Attendance-GetShift
Table 5 - Outbound Message Detail for Attendance-GetShift
Method | URL Structure | Endpoint |
POST | https://[environment].mestec.net | /api/Attendance/GetShift |
The body of the payload should follow the format below.
“in” and “out” should be in the format: “YYYY-MM-DDTHH:mm:ss.0000Z”, where:
YYYY is the year
MM is the month
DD is the day
HH is the hour
mm is minutes
ss is seconds
Example: “2024-07-16T11:27:57.946Z”
See Table 6 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 6 - Parameter Information for Attendance-GetShift
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
UserName | Useraccount.name | VARCHAR2(50) | Yes | No | Exact |
in | N/A |
| Yes | N/A | N/A |
out | N/A |
| Yes | N/A | N/A |
Sample Request
See below for sample use cases with examples of the JSON payload format required.
To request shift information.

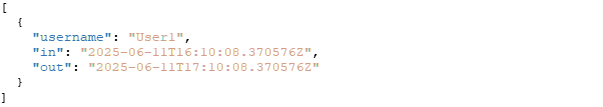

JSON Sample for Attendance-GetShift request
Response
When using the Attendance-GetShift API call , if any data has been found in Eyelit MES-M that meets the parameter values passed in the original payload, a JSON payload will be returned containing data in the following structure:
Format for Attendance-GetShift response
Where “ID” will be the shift id and “Name” will be the name of the shift.
Sample Response

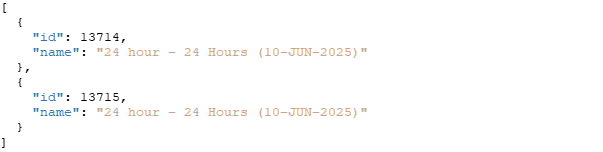

Sample JSON response for successful Attendance-GetShift request
Delete
The Attendance-Delete API call is used to delete an existing attendance log. This API has been superseded by the Attendance-ClockIn and Attendance-ClockOut APIs.
