Product Specifications

Product specifications define acceptance criteria for products. These are sub-divided into the following check item types:

• Attribute: For attributes pass/fail criteria are descriptive. For example, there must be no scratch > 3mm on the sidewall.
• Text: For text items, the criteria describe the valid text. For example, data to be collected must be a date in the format; yyyy-mm-dd.
• Variable: For variables the criteria are numeric specifications. For example, the height of the product is a design specification and must be 20mm ± 2mm.

Check item templates are associated with one or more product types (see Product Type) and therefore typically associated with multiple products. Product specifications are created for each product that a check item template is associated with. For example, the height characteristic may be associated with the "Bottles" product type with three products: large, medium and small bottles. Each product will have its own specification for height.

Because a check item template may be referenced by more than one checklist, a product specification may also be applicable to multiple check lists. For example 5 samples of height measurements might be collected as part of a start-up checklist and then single samples of height may be measure as part of an hourly quality checklist. The specification for height need only be specified once for the height check item template and this specification will be used by all checklists that references height.

You can access product specifications from the Products screen or from the Check Item Template screen.

Access/Edit product specifications from the Products page

When accessed from the Products screen, the Product Specifications page displays the Check Items assigned to checklists for the selected product.

Users with the appropriate permissions can update product specifications. The instructions below accesses and edits the product specifications page from the Products page.

1. Navigate to the Products page and select a product.
2. Click the Specifications button to display. The Product Specification screen that is displayed shows the check items that are linked to the product for an Attribute, Text and Variable type.
3. To edit a check item, select it and click the Edit button.
4. Update the Edit Specifications screen that is displayed.
5. Provide an e-signature if requested. If an e-signature is required to updated.

Access/Edit product specifications from the Check Item Template page

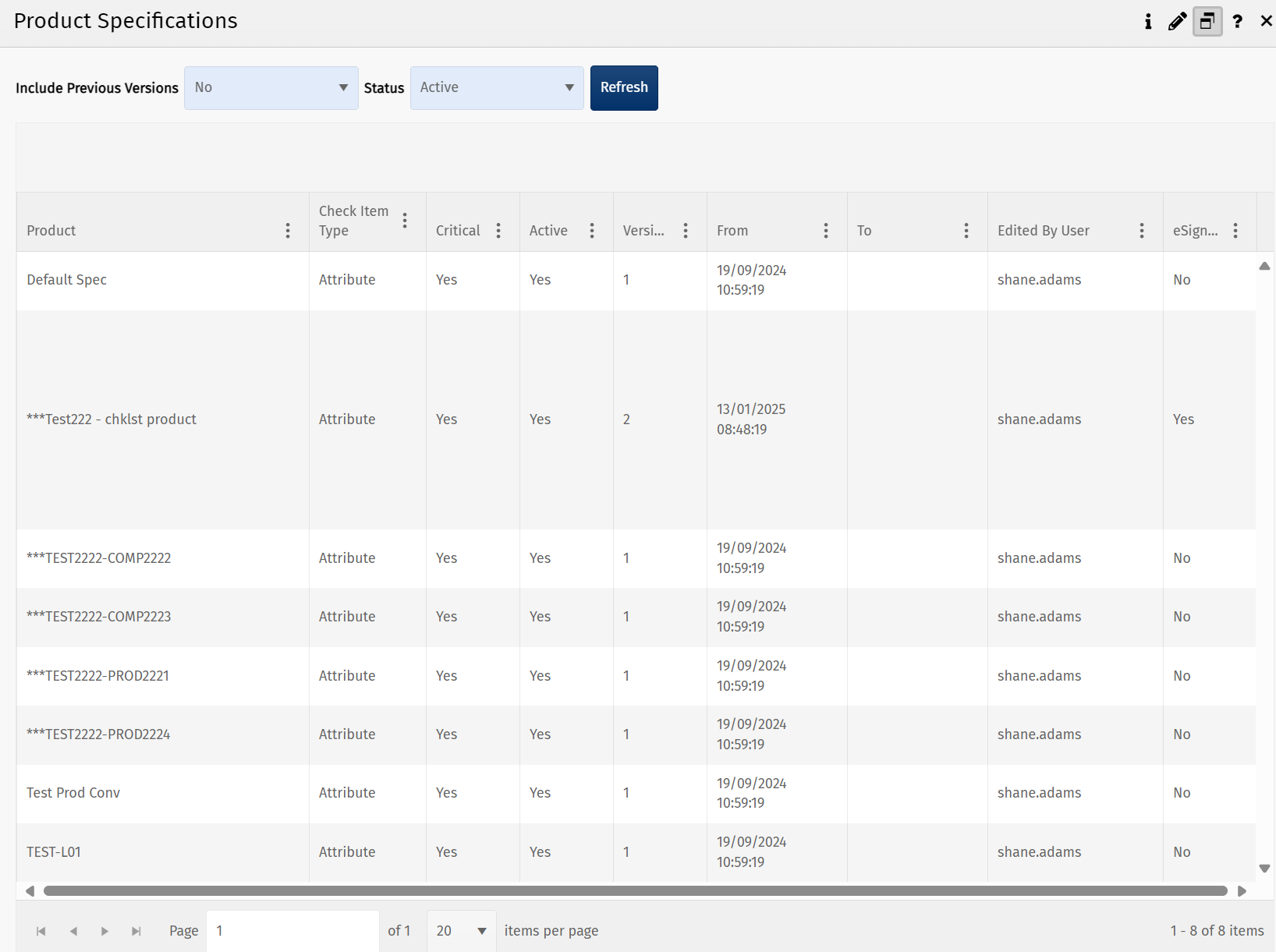

When accessed from the Check Item Template page, the Product Specification page displays the list of products that use the selected check item in a checklist.

You can choose display previous versions of specifications and statuses (Active, Inactive or All).

Users with the appropriate permissions can update product specifications. The instructions below accesses and edits the product specifications from the Checklists page.

1. Navigate to the Checklists screen and click the Check Item Templates button.
2. Select a check item template from the Attributes, Text or Variables lists and click the Product Specifications button.
3. The Product Specifications screen displays a list of all the products that are assigned to the product types specified for the check item template.
4. Select the product type and click the Edit button.
5. The edit specification screen relevant to the type of checklist item is displayed which are:
   1. Attribute:
      1.  Criteria Text: The definition of what's acceptable for the product.
      2. From: The date the selected version was created.
      3. To: The date the selected version ended. This field will not display if there's only one version.
   2. Text:
      1.  Criteria Text: Define what is acceptable for example the date format to use in a field.
      2. From: The date the selected version was created.
      3. To: The date the selected version ended. This field will not display if there's only one version.
   3. Variable:
      1. Absolute Max: Used as a basic validation of the data entered by the operator to ensure that they haven’t got the incorrect UOM. For example, g vs kg, m vs cm. The system will not block you inputting higher values, but is used for statistical process control (SPC) calculations.
      2. Upper Spec Limit: Values between the lower and upper limits are considered within tolerance.
      3. Target Value: The target value.
      4. Lower Spec Limit: Values between the lower and upper limits are considered within tolerance.
      5. Absolute Min: Used as a basic validation of the data entered by the operator to ensure that they haven’t got the incorrect UOM. For example, g vs kg, m vs cm. The system will not block you inputting lower values, but is used for SPC.
      6. From: The date the selected version was created.
      7. To: The date the selected version ended. This field will not display if there's only one version.
