Versions
Versions this documentation is relevant for:
- 8.7.0+
AssignProducts
The Product Group – AssignProducts API call attempts to assign a Product to a Product Group.
Figure 1 shows the logic used within the Product Group – AssignProducts API call.

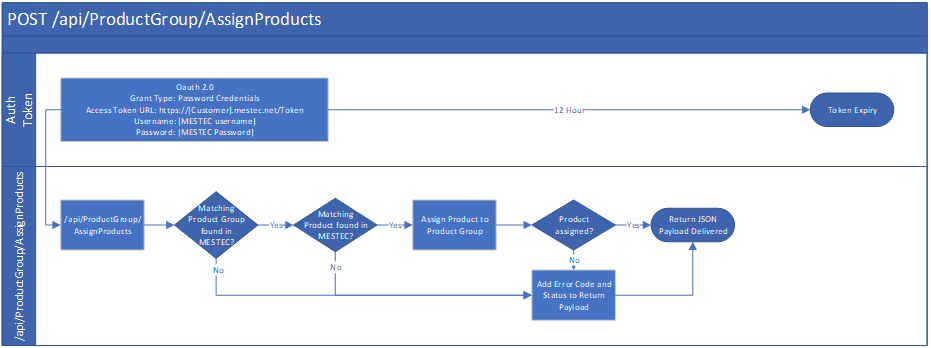

Figure 1 - Logic within ProductGroup/AssignProducts API Call
Prerequisites
When assigning a Product to a Product Group, both the Product and Product Group must exist in Eyelit MES-M.
Request
Table 1 shows the method and endpoint required to make the API call to AssignProducts.
Table 1 - Outbound Message Detail for Product Group - AssignProducts
Method | URL Structure | Endpoint |
POST | https://[environment].mestec.net | /api/ProductGroup/AssignProducts |

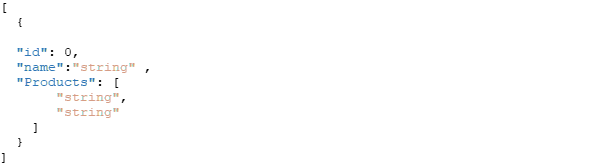

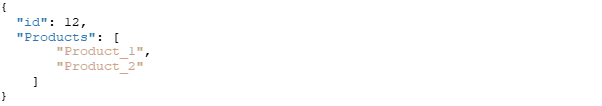

The body of the payload should follow the format below.
See Table 2 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 2 - Parameter Information for ProductGroup - AssignProducts
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
id | productgroup.id | NUMBER | No | N/A | Exact |
Products | product.name | VARCHAR2(250 BYTE) | No | N/A | Exact |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string.
Sample Request
See below for sample use cases with examples of the JSON payload format required.

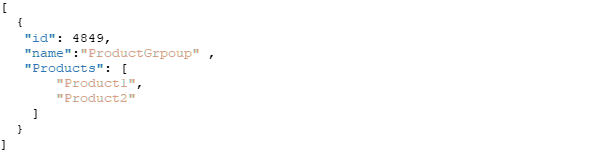

Assign by ID
Response

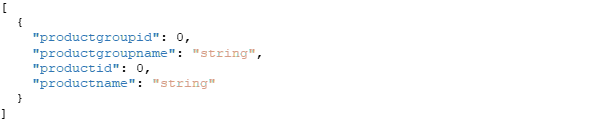

When using the Product Group – AssignProducts API call, if a Product has been assigned from a Product Group, a JSON payload will be returned containing data in the following structure:
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
UnassignProducts
The Product Group – UnassignProducts API call attempts to unassign a Product from a Product Group.

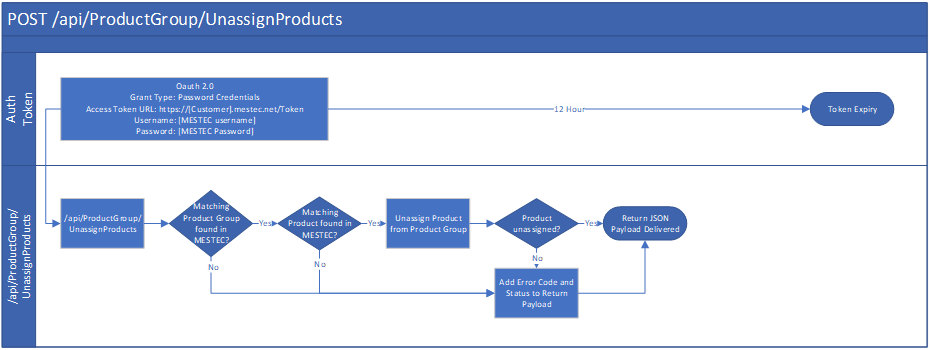

Figure 2 shows the logic used within the Product Group – UnassignProducts API call.

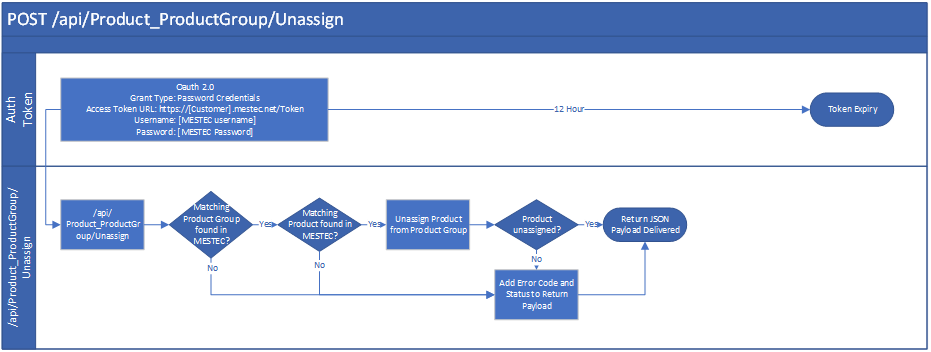

Figure 2 - Logic within ProductGroup/UnassignProducts API Call
Prerequisites
When unassigning a Product from a Product Group, both the Product and Product Group must exist in Eyelit MES-M, Additionally, the Product must be assigned to the Product Group.
Request
Table 3 shows the method and endpoint required to make the API call to unasssign a Product from a Product Group.
Table 3 - Outbound Message Detail for Product Group - UnAssignProducts
Method | URL Structure | Endpoint |
POST | https://[environment].mestec.net | /api/ProductGroup/UnassignProducts |

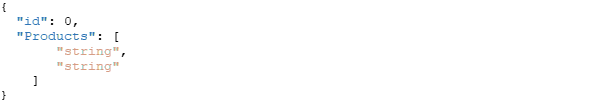

The body of the payload should follow the format below.
Table 4 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 4 - Parameter Information for ProductGroup -UnAssignProducts
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
ID | productgroup.id | NUMBER | Yes | N/A | Exact |
Products | product.name | VARCHAR2(50 BYTE) | Yes | N/A | Exact |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string. See examples in Section 3.1.3.1 for use cases.
Sample Request
See below for sample use cases with examples of the JSON payload format required.

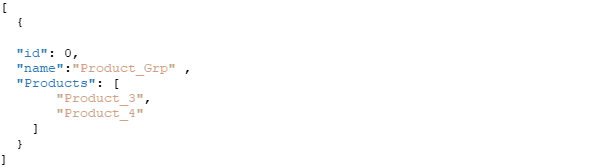

Unassign by ID
Response
When using the ProductGroup – Unassign API call, if a Product has been unassigned from a Product Group, a JSON payload will be returned containing data in the following structure:

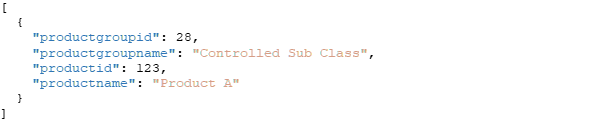

Sample Response
See below for sample use cases with examples of the JSON payload format returned.
