Versions
Versions this documentation is relevant for:
- 8.7.0+
A BoM type is used to specify level of control required for a BoM. It is also used to specify that a BoM is job specific or not.
List
The BoM – List API call reads existing BoM Types from Eyelit MES-M. The data can be filtered based on the parameters passed in the body/payload of the JSON packet giving the flexibility to search for one or multiple BoM Types.
Using the BoM Type – List API call has no impact on the data within the given Eyelit MES-M application, it is read-only.

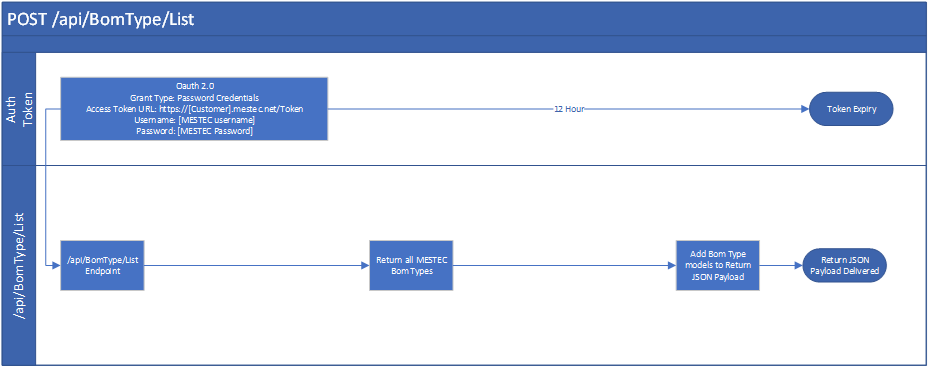

Figure 1 - Logic within BoM Type/List API Call
Data Prerequisites
There is no data required in Eyelit MES-M to act as a pre-requisite to make the API call to list BoM Types. If parameters are passed in through the body that return no valid results, an empty payload will be returned.
Request
Table 1 shows the method and endpoint required to make the API call to list Scheduled Jobs.
Table 1 - Outbound Message Detail for BoM Type - List
Method | URL Structure | Endpoint |
POST | https://[environment].mestec.net | /api/BomType/List |
The body of the payload should follow the format below.
Note that this transaction does not currently support any parameters.
Sample Request
See below for sample use cases with examples of the JSON payload format required.
To list all BoM Types:
Response
When using the BoM Type – List API call, a JSON payload will be returned containing data in the following structure:

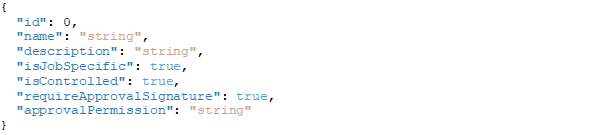

JSON Structure for BoM Type List

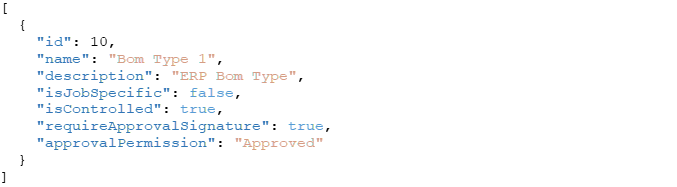

Sample Response
See below for sample use cases with examples of the JSON payload format returned.
JSON Sample for BoM Type List Response A
Upsert
When BoM Type ID is provided, The BoM Type – Upsert API call checks if a BoM Type with the given ID already exists. If it does, appropriate fields are updated in the matching BoM Type in Eyelit MES-M.
When the BoM Type ID is omitted, a new BoM Type will be created.
Figure 2 - Logic within BoM Type/Upsert API Call
Data Prerequisites
No prerequisites for this transaction.
Request
Table 2 shows the method and endpoint required to make the API call to Upsert BoM Type.
Table 2 - Outbound Message Detail for BoM Type - Upsert
Method | URL Structure | Endpoint |
PUT | https://[environment].mestec.net | /api/BomType/Upsert |
The body of the payload should follow the format below.
See Table 3 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 3 - Parameter Information for BoM Type - Upsert
Parameter Name | Data Mapping | Data Type | Mandatory |
| Case Sensitive | Match Type |
|
|
| Create | Update |
|
|
Id | Bomtype.id | NUMBER(10,0) | N/A | Yes | N/A | Exact |
Name | Bomtype.name | VARCHAR2(50 BYTE) | Yes | No | N/A | N/A |
Description | Bomtype.description | VARCHAR2(250 BYTE) | No | No | N/A | N/A |
isJobSpecific | Bomtype.isjobspecific | BOOL | Yes | No | N/A | N/A |
isControlled | Bomtype.iscntrolled | BOOL | Yes | No | N/A | N/A |
requireApprovalSignature | Bomtype.requireapprovalsignature | BOOL | Yes | No | N/A | N/A |
approvalPermission | Permission.permissionname | VARCHAR2(100 BYTE) | Yes | No | No | Exact |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string.
Sample Request
See below for sample use cases with examples of the JSON payload format required.

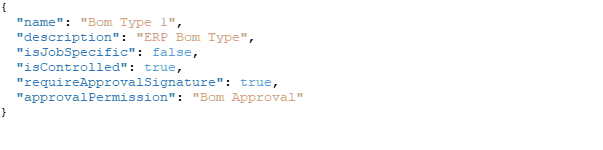

To create a BoM Type.

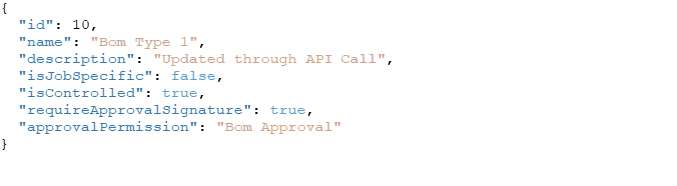

To update description by ID.
Response

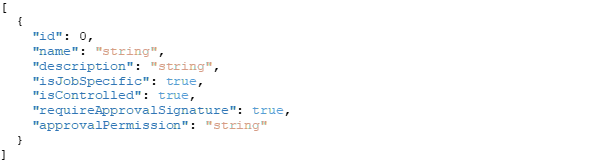

When using the BoM Type – Upsert API call, if a BoM Type has been Created or Updated a JSON payload will be returned containing data in the following structure:
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
Delete
The BoM Type – Delete API call attempts to delete a BoM Type. A BoM Type can be deleted as long as it has not been used.
Figure 3 shows the logic used within the BoM Type – Delete API call.

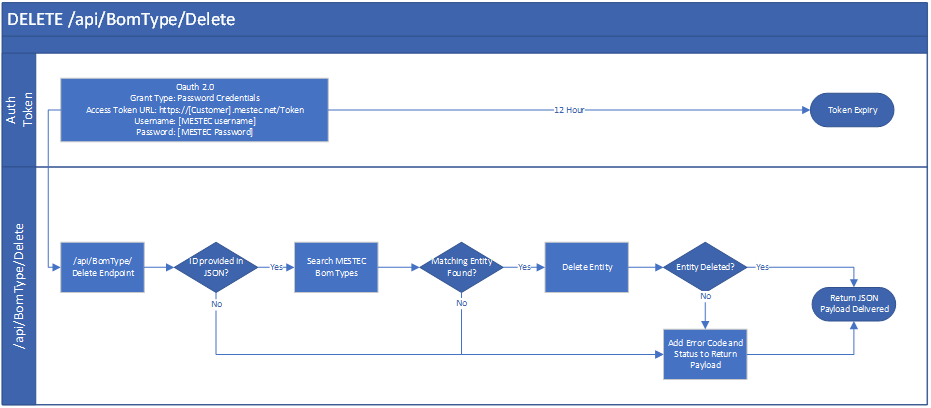

Figure 3 - Logic within BoM Type/Delete API Call
Data Prerequisites
In order to delete a BoM Type it must exist in Eyelit MES-M and not currently be in use.
Request
Table 4 shows the method and endpoint required to make the API call to delete a BoM Type.
Table 4 - Outbound Message Detail for Schedule - Delete
Method | URL Structure | Endpoint |
DELETE | https://[environment].mestec.net | /api/Bom Type/Delete |
The body of the payload should follow the format below.
See Table 5 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 5 - Parameter Information for BoM Type - Delete
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
ID | BomType.id | NUMBER | No | N/A | Exact |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string. See examples in Section 3.1.3.1 for use cases.
Sample Request
See below for sample use cases with examples of the JSON payload format required.
Delete by ID
Response
When using the BoM Type – Delete API call, if a BoM Type has been Deleted a 200 status response will be returned.
