A tool is a piece of equipment used to aid in the manufacturing process. Tools could be things such as hammers and spanners or things such as jigs.
Upsert
When tool ID is provided, the Tool – Upsert API call checks if a tool with the given ID already exists. If it does, the appropriate fields are updated in the matching tool in Eyelit MES-M.
When the tool ID is omitted, a new tool will be created.

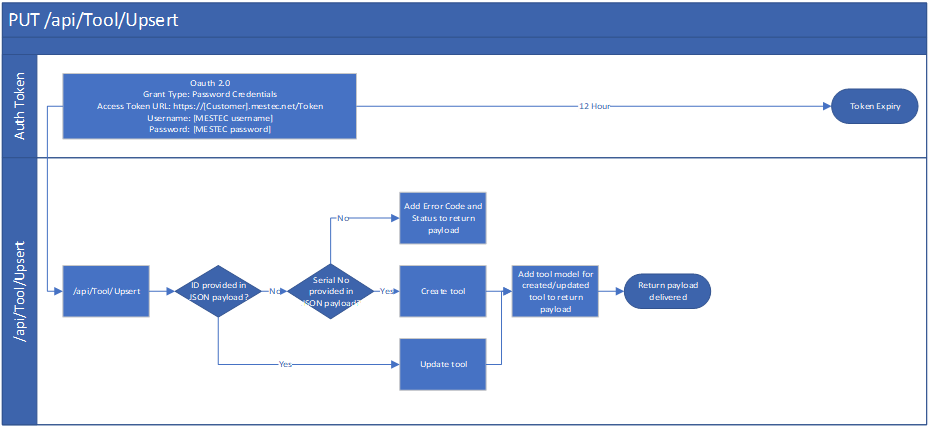

Figure 1 - Logic within Tool/Upsert API Call
Data Prerequisites
There is no data required in Eyelit MES-M to act as a pre-requisite to make the API call to upsert tools. If parameters are passed in through the body that return no valid results a new tool will be created, otherwise the tool identified will be updated.
Request
Table 1 shows the method and endpoint required to make the API call to upsert tools.
Table 1 - Outbound Message Detail for Tool - Upsert
Method | URL Structure | Endpoint |
PUT | https://[environment].mestec.net | /api/Tool/Upsert |
The body of the payload should follow the format below.

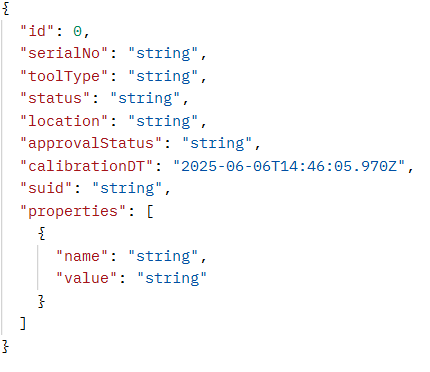

JSON Structure for Tool Upsert
See Table 2 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 2 – Parameter Information for Tool – Upsert
Parameter Name | Data Mapping | Data Type | Mandatory |
| Case Sensitive | Match Type |
|
|
| Create | Update |
|
|
id | TOOL.ID | Integer | No | Yes | N/A | Exact |
serialNo | TOOL.SERIALNO | String | Yes | No | N/A | N/A |
toolType | TOOLTYPE.NAME | String | Yes | No | N/A | Exact |
status | TOOLSTATUS.NAME | String | Yes | No | N/A | Exact |
location | LOCATION.NAME | String | Yes | No | N/A | Exact |
approvalStatus | TOOLAPPROVALSTATUS.NAME | String | Yes | No | N/A | Exact |
calibrationDT | TOOL.CALIRATIONDT | DateTime | No | No | N/A | N/A |
suid | TOOL.SUID | String | No | No | N/A | N/A |
properties | N/A | JSON Array | No | No | N/A | N/A |
properties\name | TABLEPROPERTYDEFINITION.NAME | String | No | No | N/A | Exact |
properties\value | TOOLPROP.VALUE | String | No | No | N/A | N/A |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string.
Sample Request
See below for sample use cases with examples of the JSON payload format required.

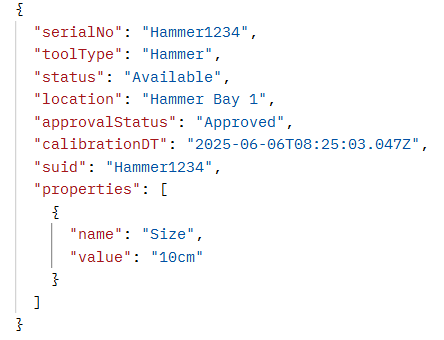

To create a tool:
JSON Sample for Tool Upsert to create a new tool

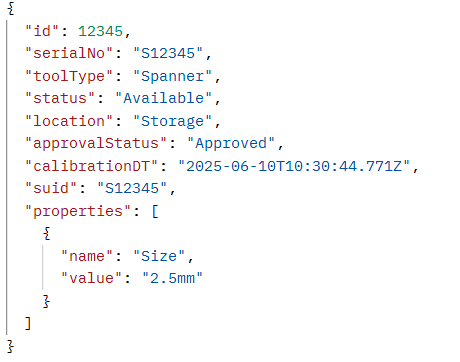

To update a tool’s status, location, and approval status:
JSON Sample for Tool Upsert to update a tool
Response
When using the Tool – Upsert API call, a JSON payload will be returned containing data in the following structure:
JSON Structure for Tool Upsert
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
JSON Sample for Tool Upsert
List
The Tool – List API call reads existing tools from Eyelit MES-M. The data can be filtered based on the parameters passed in the body/payload of the JSON packet giving the flexibility to search for one or multiple tools.
Using the Tool – List API call has no impact on the data within the given Eyelit MES-M application, it is read-only.
Figure 2 shows the logic used within the Tool – List API call.

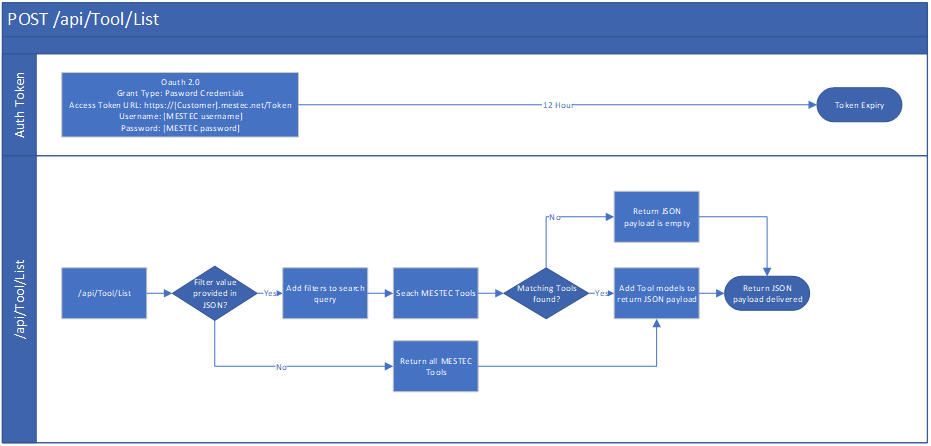

Figure 2 - Logic within Tool/List API Call
Data Prerequisites
There is no data required in Eyelit MES-M to act as a pre-requisite to make the API call to list tools. If parameters are passed in through the body that return no valid results, an empty payload will be returned.
Request
Table 3 shows the method and endpoint required to make the API call to list tools.
Table 3 - Outbound Message Detail for Tool- List
Method | URL Structure | Endpoint |
POST | https://[environment].mestec.net | /api/Tool/List |
The body of the payload should follow the format below.

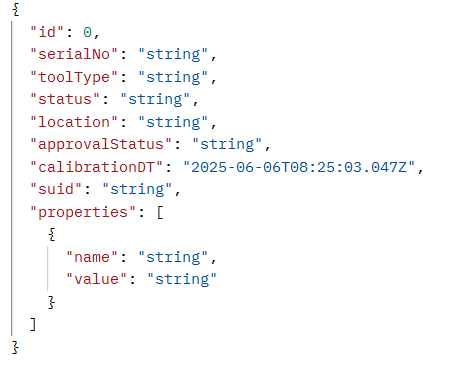

JSON Structure for Tool Upsert
See Table 4 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 4 – Parameter Information for Tool – List
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
id | TOOL.ID | Integer | No | N/A | Exact |
serialNo | TOOL.SERIALNO | String | No | N/A | Exact |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string.
Sample Request
See below for sample use cases with examples of the JSON payload format required.
To list all tools:
JSON Structure for Tool List – list all tools
To list tools where the serial number is “Tool12345”:
JSON Structure for Tool List – list a specific tool
Response
When using the Tool – List API call, a JSON payload will be returned containing data in the following structure:
JSON Sample for Tool List
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
No results were found that matched the given parameters:

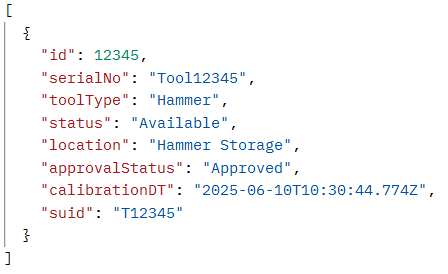

Tool found that matched the given parameters:
Delete
The Tool – Delete API call attempts to delete a tool. A tool can only be deleted if not referenced against any other entities (e.g., Tool Group).
Figure 3 shows the logic used within the Tool – Delete API call.

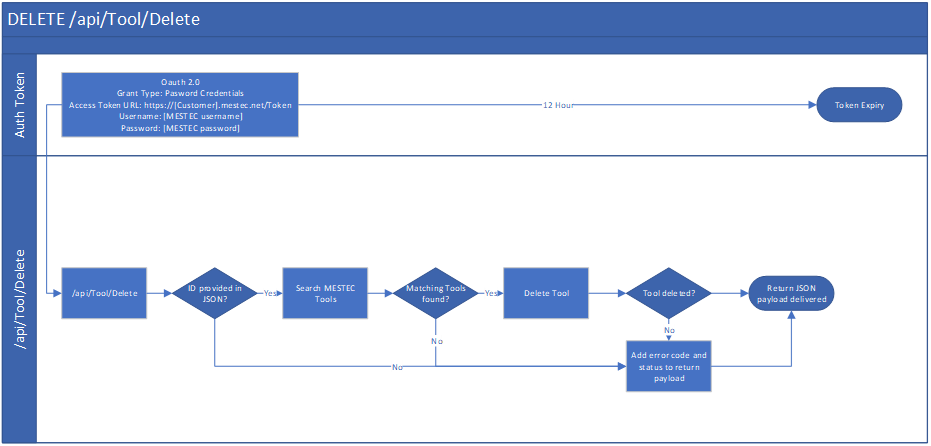

Figure 3 – Logic within Tool/Delete API call
Prerequisites
In order to delete a tool, the tool must exist in Eyelit MES-M.
The tool has not been used and not been referenced against any other entities.
Request
Table 5 shows the method and endpoint required to make the API call to delete tools.
Table 5 - Outbound Message Detail for Tool - Delete
Method | URL Structure | Endpoint |
DELETE | https://[environment].mestec.net | /api/Tool/Delete |
The body of the payload should follow the format below.
JSON Structure for Tool Delete
See Table 6 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 6 – Parameter Information for Tool – Delete
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
id | TOOL.ID | Integer | No | N/A | Exact |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string.
Sample Request
See below for sample use cases with examples of the JSON payload format required.
Delete by ID:
Response
When using the Tool – Delete API call, if a tool has been deleted a JSON payload will be returned containing data in the following structure:
