Versions
Versions this documentation is relevant for:
- 8.8.0+
List
The User – List API call reads existing Users from Eyelit MES-M. The data can be filtered based on the parameters passed in the body of the JSON packet giving the flexibility to search for one or multiple Users.
Using the User – List API call has no impact on the data within the given Eyelit MES-M application, it is read-only.

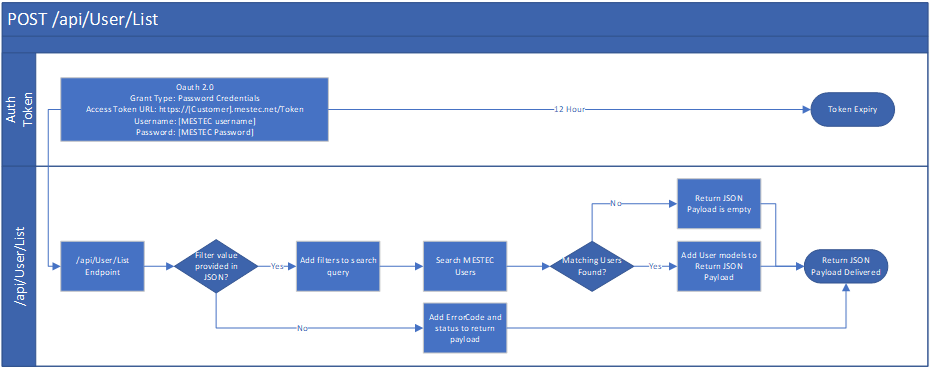

Figure 1 - Logic within User/List API Call
Data Prerequisites
There is no data required in Eyelit MES-M to act as a pre-requisite to make the API call to list Users, although to be able to call the Public API, a user must exist in the given Eyelit MES-M environment. It is, therefore, not possible to receive an empty payload in response when calling this endpoint.
Request
Table 1 shows the method and endpoint required to make the API call to list Users.
Table 1 - Outbound Message Detail for User- List
Method | URL Structure | Endpoint |
POST | https://[environment].mestec.net | /api/User/List |
The body of the payload should follow the format below:
See Table 2 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 2 - Parameter Information for User- List
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
ID | useraccount.id | NUMBER | No | N/A | Exact |
Username | useraccount.username | VARCHAR2(50 BYTE) | No | No | Exact |
SUID | useraccount.suid | VARCHAR2(200 BYTE) | No | No | Exact |
Sample Request
See below for sample use cases with examples of the JSON payload format required.
To list Users where the username is equal to ‘Adam’:
Response

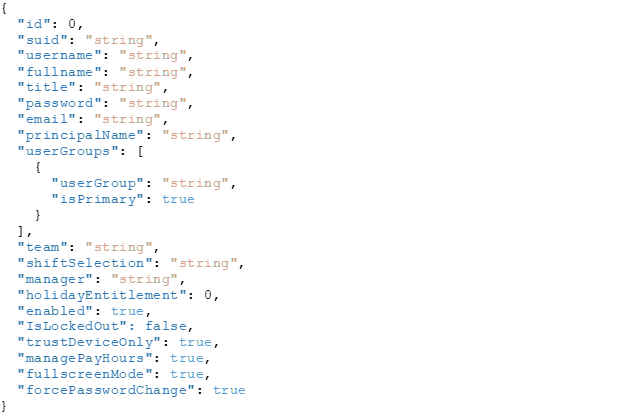

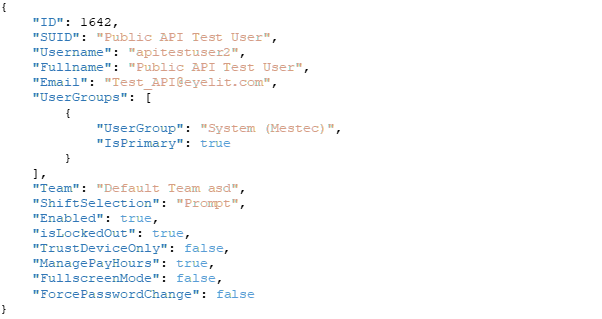

When using the User – List API call, if any data has been found in Eyelit MES-M that meets the parameter values passed in the original payload, a JSON payload will be returned containing data in the following structure:
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
No results were found that matched given parameters:

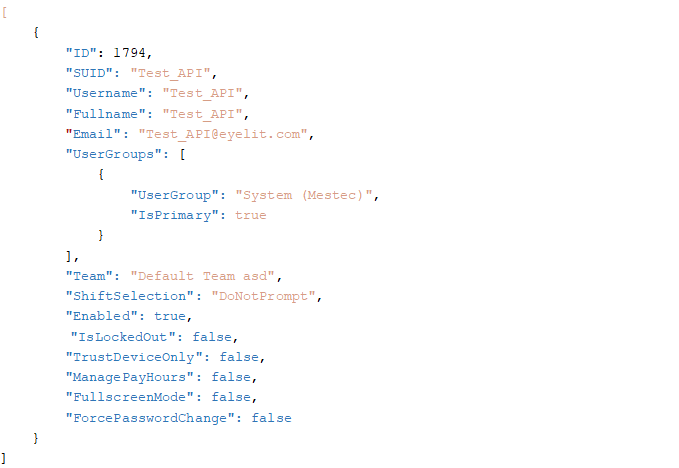

Single User found that matched given parameters:
Upsert
When User ID is provided, the User – Upsert API call checks if a User with the given ID already exists. If it does, appropriate fields are updated in the matching User in Eyelit MES-M.
When the User ID is omitted, a new User will be created.

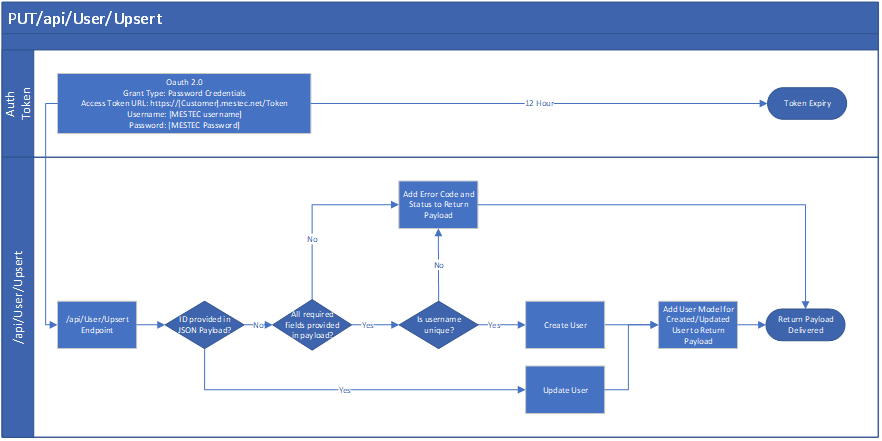

Figure 2 - Logic within User/Upsert API Call
Data Prerequisites
To create a user, the Team, User Group and, if required, Manager must already exist in Eyelit MES-M.
Request
Table 3 shows the method and endpoint required to make the API call to Upsert Users.
Table 3 - Outbound Message Detail for User - Upsert
Method | URL Structure | Endpoint |
PUT | https://[environment].mestec.net | /api/User/Upsert |

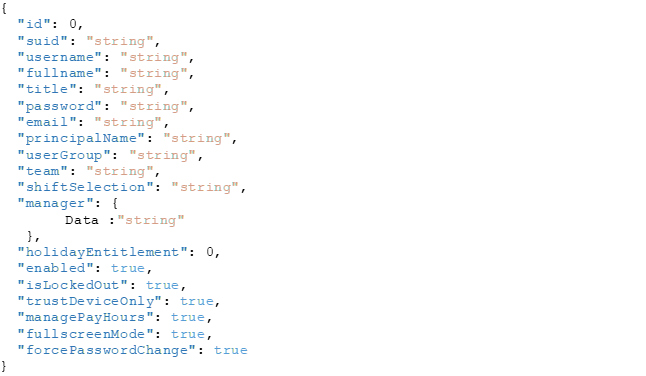

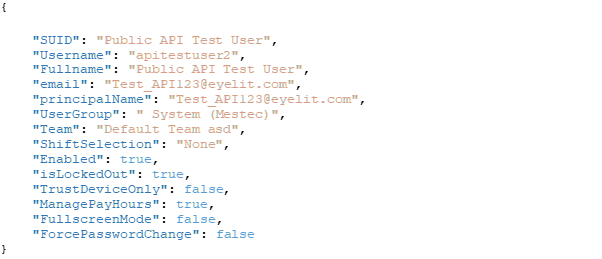

The body of the payload should follow the format below.
See Table 4 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 4 - Parameter Information for User - Upsert
Parameter Name | Data Mapping | Data Type | Mandatory |
| Case Sensitive | Match Type |
|
|
| Create | Update |
|
|
id | useraccount.id | NUMBER | N/A | Yes | N/A | Exact |
suid | useraccount.suid | VARCHAR2(200 BYTE) | No | No | N/A | N/A |
username | Useraccount.username | VARCHAR2(50) | Yes | No | N/A | N/A |
fullname | Useraccount.fullname | VARCHAR2(50) | Yes | No | N/A | N/A |
title | Useraccount.title | VARCHAR2(50) | No | No | N/A | N/A |
password | Useraccount.password | VARCHAR2(250) | Yes | No | Yes | N/A |
Useraccount.email | VARCHAR2(100) | No | No | N/A | N/A | |
principalName | Useraccount.principalname | ARCHAR2(100 BYTE) | No | No | N/A | N/A |
usergroup | User_usergroup.usergroupid | VARCHAR2(50) | Yes | No | No | Exact |
team | User_team.teamid | VARCHAR2(50) | Yes | No | No | Exact |
shiftselection | Useraccount.shiftselectionmodeid | VARCHAR2(50) DoNotPrompt/None/Prompt | Yes | No | No | Exact |
manager | N/A | JSON Field | No | No | N/A | N/A |
Data | Useraccount.fullname | VARCHAR2(50) | No | No | No | Exact |
holidayentitlement | Useraccount.holidayentitlement | NUMBER | No | No | N/A | N/A |
enabled | Useraccount.isenabled | BOOL | Yes | No | N/A | N/A |
isLockedOut | Useraccount.islockedout | BOOL | No | No | N/A | N/A |
trustdeviceonly | Useraccount.trusteddevicesonly | BOOL | Yes | No | N/A | N/A |
managepayhours | Useraccount.managepayhours | BOOL | Yes | No | N/A | N/A |
fullscreenmode | Useraccount.fullscreen | BOOL | Yes | No | N/A | N/A |
forcepasswordchange | Useraccount.passwordchangedt | BOOL | Yes | No | N/A | N/A |
Sample Request
See below for sample use cases with examples of the JSON payload format required.

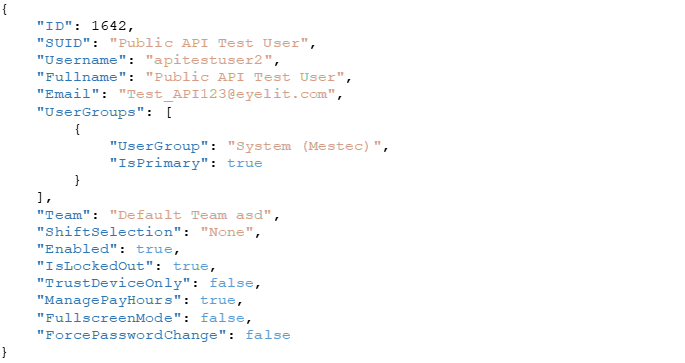

To create a User:
To update shift selection mode by ID:
Response

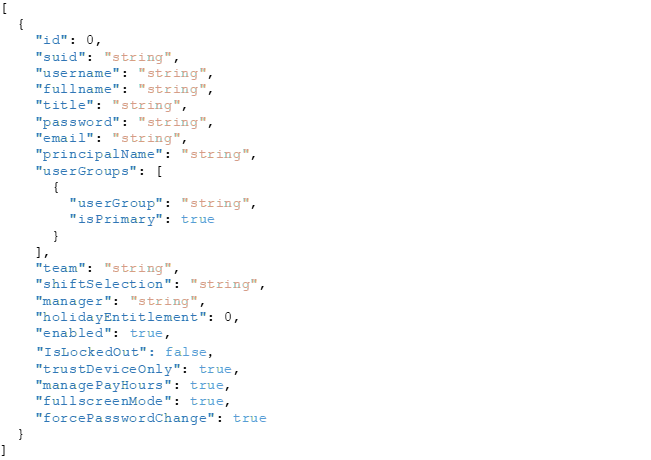

When using the User – Upsert API call, if a User has been created or updated, a JSON payload will be returned containing data in the following structure:
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
Delete
The User – Delete API call attempts to delete a User. A User can only be deleted if it has never been used. If someone logs into the account, an attendance log will begin and the user can no longer be deleted.

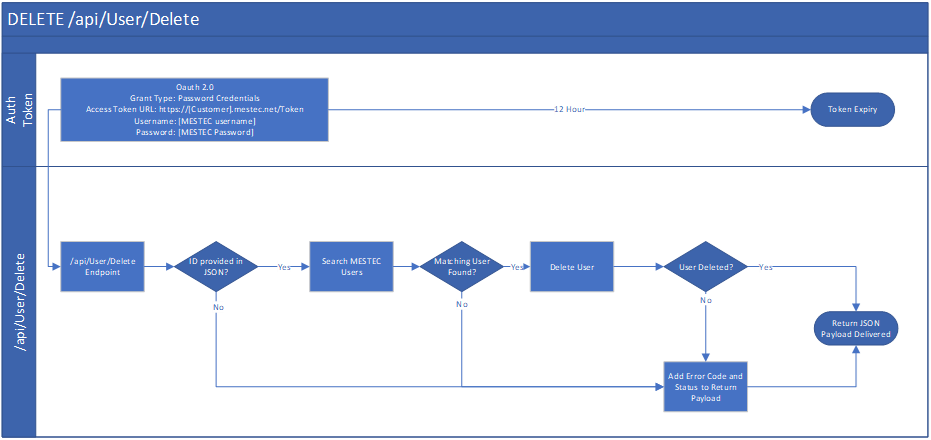

Figure 3 shows the logic used within the User – Delete API call.
Figure 3 - Logic within User/Delete API Call
Data Prerequisites
In order to delete a User it must exist in Eyelit MES-M and not have been used.
Request
Table 5 shows the method and endpoint required to make the API call to delete a User.
Table 5 - Outbound Message Detail for User - Delete
Method | URL Structure | Endpoint |
DELETE | https://[environment].mestec.net | /api/User/Delete |
The body of the payload should follow the format below.
See Table 6 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 6 - Parameter Information for User - Delete
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
ID | user.id | NUMBER | Yes | N/A | Exact |
Sample Request
See below for sample use cases with examples of the JSON payload format required.
Delete by ID
Response
When using the User – Delete API call, if a User has been Deleted a 200 status response will be returned.
AssignGroup
The User – Assign User Group API call attempts to assign a User to a User Group.

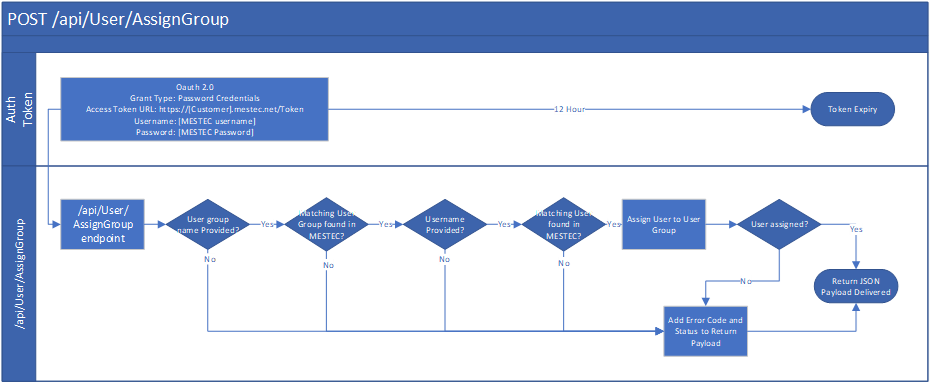

Figure 4 shows the logic used within the User – Assign Group API call.
Figure 4 - Logic within User/AssignGroup API Call
Prerequisites
When assigning a User to a User Group, both the User and User Group must exist in Eyelit MES-M.
Request
Table 7 shows the method and endpoint required to make the API call to assign a User to a User Group.
Table 7 - Outbound Message Detail for User – Assign Group
Method | URL Structure | Endpoint |
POST | https://[environment].mestec.net | /api/User/AssignGroup |
The body of the payload should follow the format displayed below:
See Table 8 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 8 - Parameter Information for User – Assign Group
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
Username | Useraccount.username | VARCHAR2(50) | Yes | No | Exact |
Usergroup | Usergroup.name | VARCHAR2(50) | Yes | No | Exact |
isprimary | User_usergroup.isprimary | BOOL | No | N/A | N/A |
Sample Request
See below for a sample use case to assign a User to a User Group. The sample provides an example of the JSON payload format required.
Response
When using the User – Assign Group API call, if the User has been successfully assigned to the User Group, a JSON payload will be returned containing data in the following structure:
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
UnassignGroup
The User – Unassign Group API call attempts to unassign a User from a User Group.
Figure 5 shows the logic used within the User - UnassignGroup API call.
Figure 5 - Logic within User/UnassignGroup API Call
Prerequisites
When unassigning a User from a User Group, both the User and User Group must exist in Eyelit MES-M, and the given User should already be assigned to the User Group.
Request
Table 9 shows the method and endpoint required to make the API call to unassign a User from a User Group.
Table 9 - Outbound Message Detail for User – Unassign Group
Method | URL Structure | Endpoint |
POST | https://[environment].mestec.net | /api/User/UnassignGroup |
The body of the payload should follow the format displayed below:
See Table 10 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 10 - Parameter Information for User – Unassign Group
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
Username | Useraccount.username | VARCHAR2(50) | Yes | No | Exact |
Usergroup | Usergroup.name | VARCHAR2(50) | Yes | No | Exact |
isprimary | User_usergroup.isprimary | BOOL | No | N/A | N/A |
Sample Request
See below for a sample use case to unassign a User from a User Group. The sample provides an example of the JSON payload format required.
Response
When using the User – Unassign Group API call, if the User has been successfully unassigned from the User Group, a JSON payload will be returned containing data in the following structure:
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
