A recipe in Eyelit MES-M is the approved combination of Workflow and BoM used to create a product. A Scheduled Job is raised against a recipe.
List
The Recipe – List API call reads existing Recipes from Eyelit MES-M. The data can be filtered based on the parameters passed in the body/payload of the JSON packet giving the flexibility to search for one or multiple Recipes.
Using the Recipe – List API call has no impact on the data within the given Eyelit MES-M application, it is read-only.

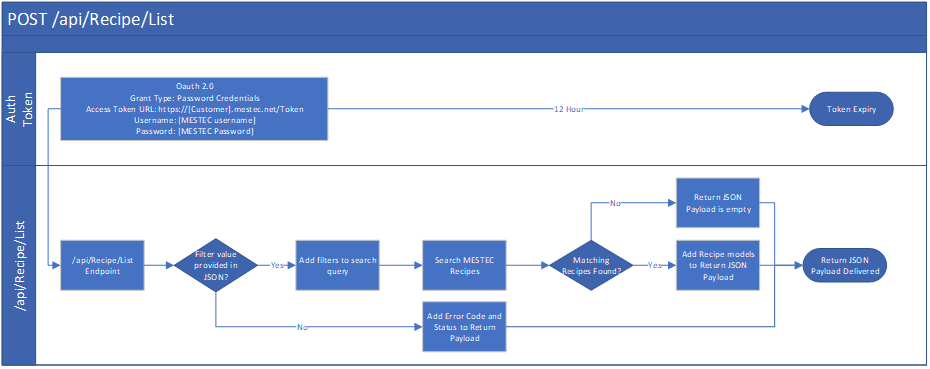

Figure 1 - Logic within Recipe/List API Call
Data Prerequisites
There is no data required in Eyelit MES-M to act as a pre-requisite to make the API call to list Recipes. If parameters are passed in through the body that return no valid results, an empty payload will be returned.
Request
Table 1 shows the method and endpoint required to make the API call to list Scheduled Jobs.
Table 1 - Outbound Message Detail for Recipe - List
Method | URL Structure | Endpoint |
POST | https://[environment].mestec.net | /api/Recipe/List |
The body of the payload should follow the format below.
JSON Structure for Recipe List
See Table 2 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 2 - Parameter Information for Schedule - List1
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
ID | recipe.id | NUMBER | No | N/A | Exact |
suid | recipe.suid |
| No | No | Exact |
productName | product.name | VARCHAR2(50 BYTE) | No | No | Exact |
name | recipe.name | VARCHAR2(200 BYTE) | No | No | Exact |
workflow | N/A | JSON Array | No | N/A | N/A |
name | workflow.name | VARCHAR2(200 BYTE) | No | No | Exact |
suid | workflow.suid | VARCHAR2(120 BYTE) | No | No | Exact |
versionSUID | workflowVersion.suid | VARCHAR2(500 BYTE) | No | No | Exact |
majorVersion | workflowVersion.majorVersion | NUMBER | No | N/A | N/A |
minorVersion | workflowVersion.minorVersion | NUMBER | No | N/A | N/A |
BOM | N/A | JSON Array | No | N/A | N/A |
name | bom.name | VARCHAR2(100 BYTE) | No | No | Exact |
suid | bom.suid | VARCHAR2(120 BYTE) | No | No | Exact |
versionSUID | bomVersion.suid | VARCHAR2(120 BYTE) | No | No | Exact |
majorVersion | bomVersion.majorVersion | NUMBER | No | N/A | N/A |
minorVersion | bomVersion.minorVersion | NUMBER | No | N/A | N/A |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string.
Sample Request
See below for sample use cases with examples of the JSON payload format required.
To list Recipes where the name is ‘ABC’:
JSON Sample for Recipe List Request
Response
When using the Recipe – List API call, if any data has been found in Eyelit MES-M that meets the parameter values passed in the original payload, a JSON payload will be returned containing data in the following structure:
JSON Structure for Recipe List
Sample Response
See below for sample use cases with examples of the JSON payload format returned.
No results were found that matched given parameters:
JSON Sample for Recipe List Response A
Recipes found that matched given parameters:
JSON Sample for Recipe List Response B
Upsert
When Recipe ID is provided, The Recipe – Upsert API call checks if a Recipe with the given ID already exists. If it does, appropriate fields are updated in the matching Recipe in Eyelit MES-M.
When the Recipe ID is omitted, a new Recipe will be created.

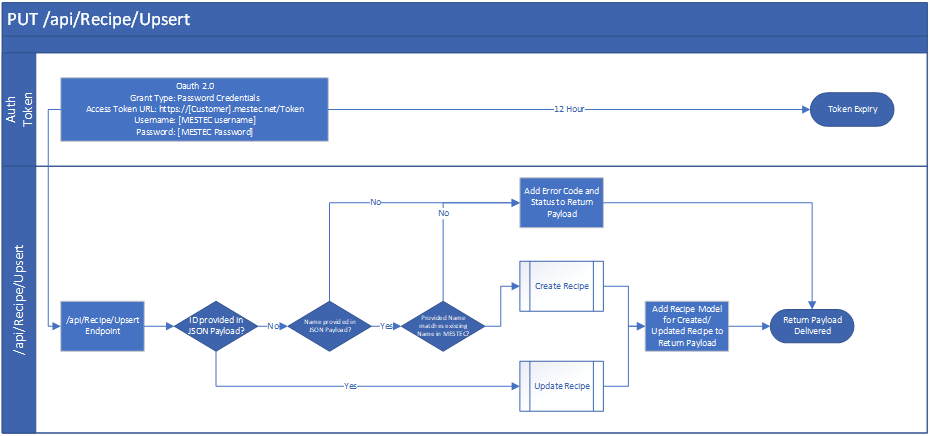

Figure 2 - Logic within Recipe/Upsert API Call
Data Prerequisites
A recipe references a product, a BoM and a workflow, these must all exist in Eyelit MES-M prior to Recipe-Upsert.
Request
Table 3 shows the method and endpoint required to make the API call to Recipe-Upsert.
Table 3 - Outbound Message Detail for Recipe - Upsert
Method | URL Structure | Endpoint |
PUT | https://[environment].mestec.net | /api/Recipe/Upsert |

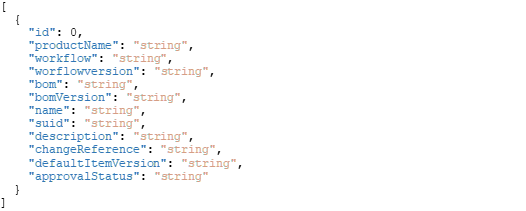

The body of the payload should follow the format below.
See Table 4 for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 4 - Parameter Information for Product Group - Upsert
Parameter Name | Data Mapping | Data Type | Mandatory |
| Case Sensitive | Match Type |
|
|
| Create | Update |
|
|
id | Recipe.id | NUMBER | N/A | Yes | N/A | Exact |
productName | Product.name | VARCHAR2(200 BYTE) | Yes | No | No | Exact |
workflow | Workflow.name | VARCHAR2(200 BYTE) | Yes | No | No | Exact |
workflowVersion | Workflow.MajorVersion | VARCHAR2(50 BYTE) | No | No | N/A | N/A |
bom | Bom.name | VARCHAR2(100) | No | No | No | Exact |
bomVersion | Bomversion.MajorVersion | VARCHAR2(50) | No | No | N/A | N/A |
name | Recipe.name | VARCHAR2(200) | Yes | No | N/A | N/A |
suid | Recipe.SUID | VARCHAR2(200) | No | No | N/A | N/A |
description | Recipe.Comments | VARCHAR2(200 BYTE) | Yes | No | N/A | N/A |
changeReference | Recipe.ChangeReference | NVARCHAR2(100 CHAR) | No | No | N/A | N/A |
defaultItemVersion | Recipe.DefaultItemVersion | NVARCHAR2(100 CHAR) | Yes | No | N/A | N/A |
approvalStatus | Approvalstatus.name | VARCHAR2(50) | No | No | No | Exact |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string.
Sample Request
See below for sample use cases with examples of the JSON payload format required.

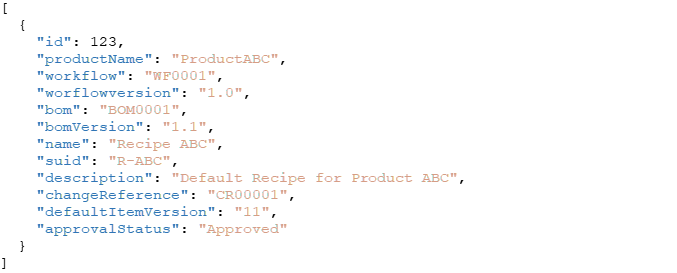

To create a Recipe.
To update description by ID.
Response

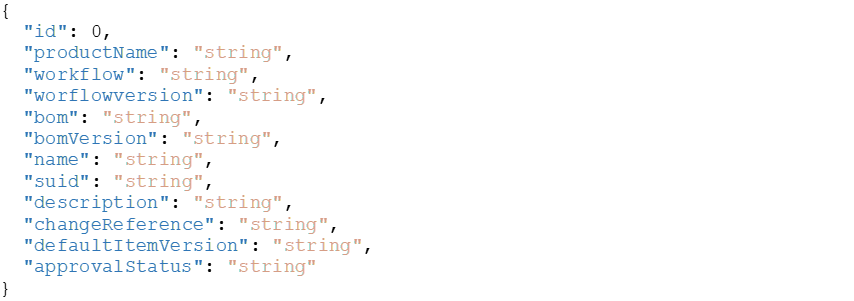

When using the Recipe – Upsert API call, if a Recipe has been Created or Updated a JSON payload will be returned containing data in the following structure:
Sample Response

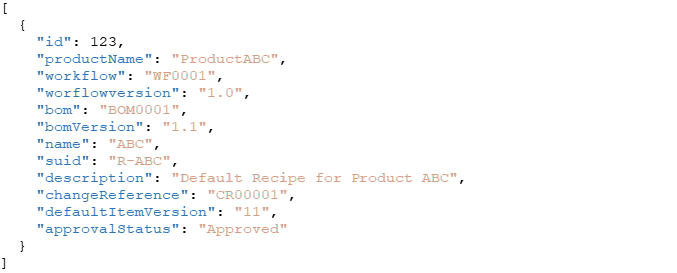

See below for sample use cases with examples of the JSON payload format returned.
Delete
The recipe – Delete API call attempts to delete a Recipe. A Recipe can be deleted as long as it has not been used.
Figure 3 shows the logic used within the Recipe – Delete API call.

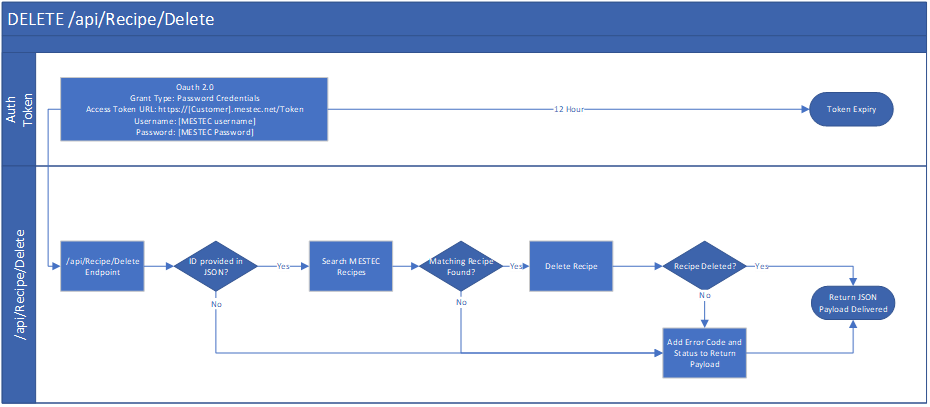

Figure 3 - Logic within Recipe/Delete API Call
Data Prerequisites
In order to delete a Recipe it must exist in Eyelit MES-M and not currently be in use.
Request
Table 5 shows the method and endpoint required to make the API call to delete a Recipe.
Table 5 - Outbound Message Detail for Recipe - Delete
Method | URL Structure | Endpoint |
DELETE | https://[environment].mestec.net | /api/Recipe/Delete |
The body of the payload should follow the format below.
See Table 6 - Parameter Information for Recipe - Delete for information on which fields are optional, the appropriate data types and the mappings to fields in Eyelit MES-M.
Table 6 - Parameter Information for Recipe - Delete
Parameter Name | Data Mapping | Data Type | Mandatory | Case Sensitive | Match Type |
ID | recipe.id | NUMBER | Yes | N/A | Exact |
Note: For any fields where the match type is ‘Like’, a percent symbol should be used as a wildcard character to indicate a number of characters within the given string.
Sample Request
See below for sample use cases with examples of the JSON payload format required.
Delete by ID
Response
When using the Recipe – Delete API call, if a Scheduled Job has been Deleted a 200 status response will be returned.
